I-MEASURE PLUS
Microscope Measurement & Analysis Software
I-MEASURE PLUS is a software solution that supports image analysis in industrial and life science fields.
It utilizes images captured from various devices such as digital microscopes, USB cameras, CC cameras, and CMOS
cameras to perform not only basic measurements but also advanced imaging analysis.
Application Areas
• Semiconductors, ceramics, new materials, and coatings – using microscopes with high-resolution cameras
• Life sciences, clinical pathology, microbiology, and cell culture observation
• Fluorescence imaging and microbiological safety testing (antimicrobial, antifungal, deodorization)
• Diagnostic imaging processing, measurement, and analysis
• Microstructure analysis with scanning electron microscopes (SEM) and transmission electron microscopes (TEM)
• Clinical skin trials using DSLR photography
• QC / QA with stereo microscopes or low-magnification zoom lenses
• Inspection of PCBs, screw threads, electronic parts, cast metals, and more
• Materials research, product development inspection, and automated inspection with motorized stages
Image Processing Features

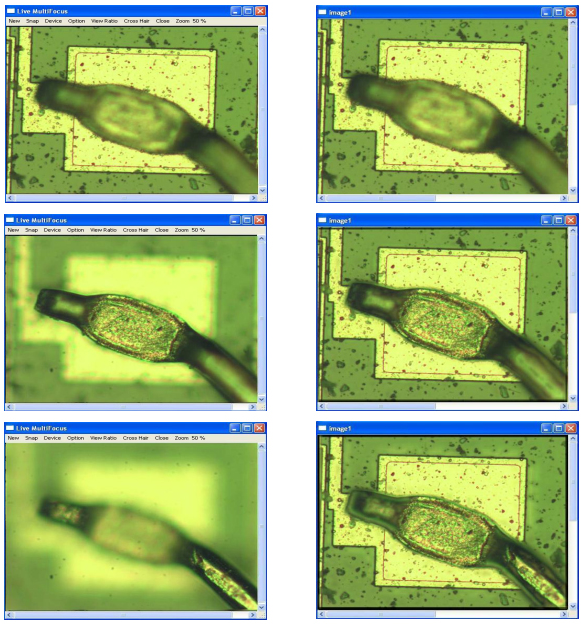

• Focus Calibration Function
Solves shallow depth-of-field issues by stacking multiple focal planes into one sharp, all-in-focus image.
• Focus Enhancement with Enhanced Align Function
Corrects motion blur caused by stage movement in microscopy.
• Real-time Focus Correction in Live View
Maintains sharpness in real-time during live video input.

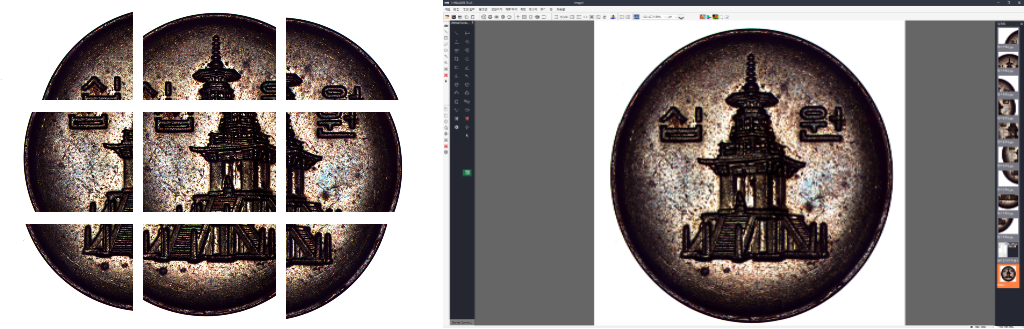

• Image Tiling
Expands the field of view (FOV) at high magnification by stitching sequentially captured images,
creating ultra-high-resolution panoramic images while preserving fine detail.

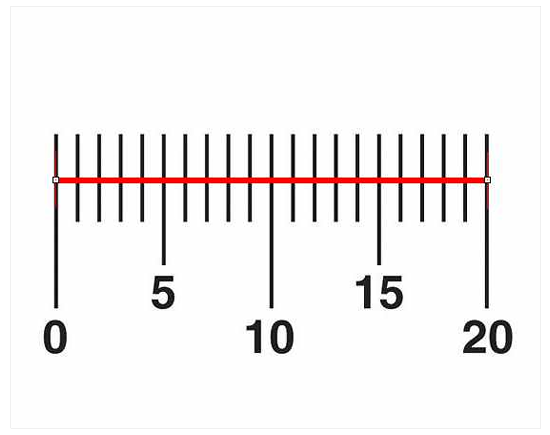

Easy Calibration & Measurement
• Supports necessary calibration procedures to ensure accuracy in I-MEASURE PLUS
• Provides precise calibration via zoom control, mouse, or keyboard cursor input
• Ensures accuracy, reliability, and repeatability of measurements

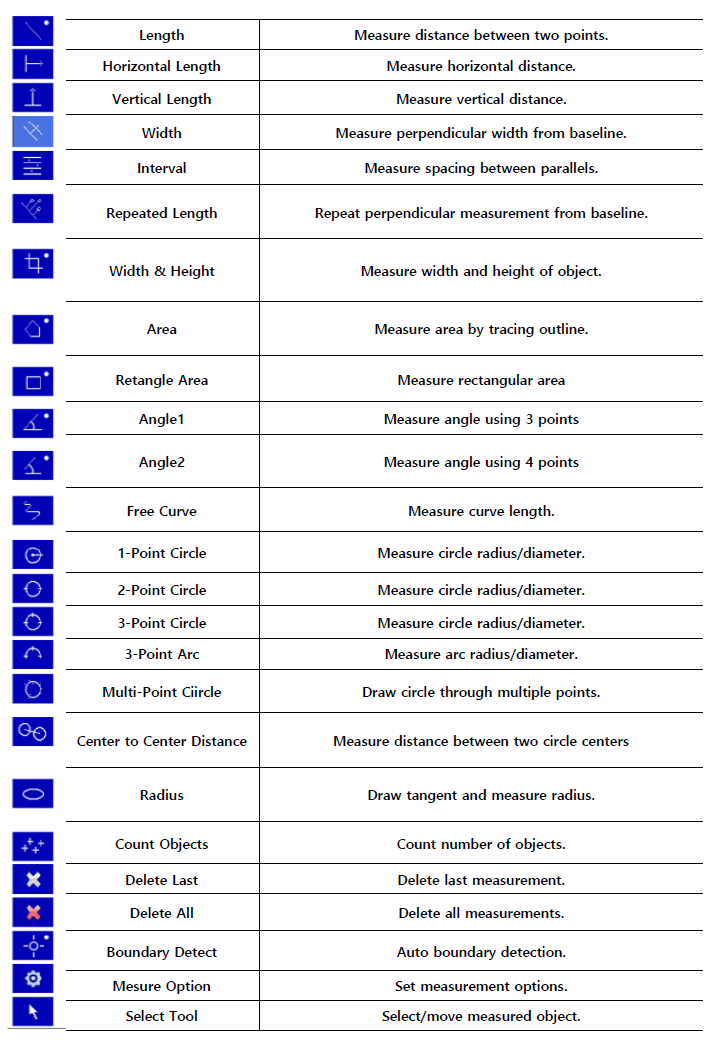

Measurement Tools
• Basic tools: length, area, angle measurement
• Automatic edge detection supported
• Advanced tools:
– 2-point circle, 3-point circle
– 2-point arc, 3-point arc
– Parallel line distance, vertical distance
– Center-to-center distance between two circles
• Precise point selection with magnified crosshair
Real-time Length Measurement
• Enables real-time length measurement during live video input

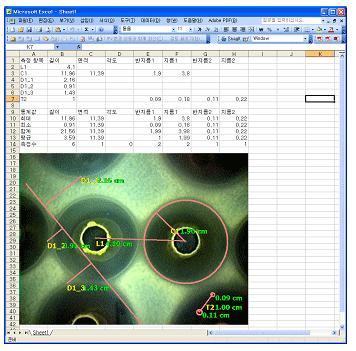

Report Generation
• Supports standardized report creation and document export
