1. What is Line Width Measurement?

Precision measurement of line widths and gaps is critical in semiconductor and PCB manufacturing.

Our solution provides automated tools to measure micro-scale patterns with sub-micron accuracy, ensuring strict adherence to design specifications.

2. Key Features

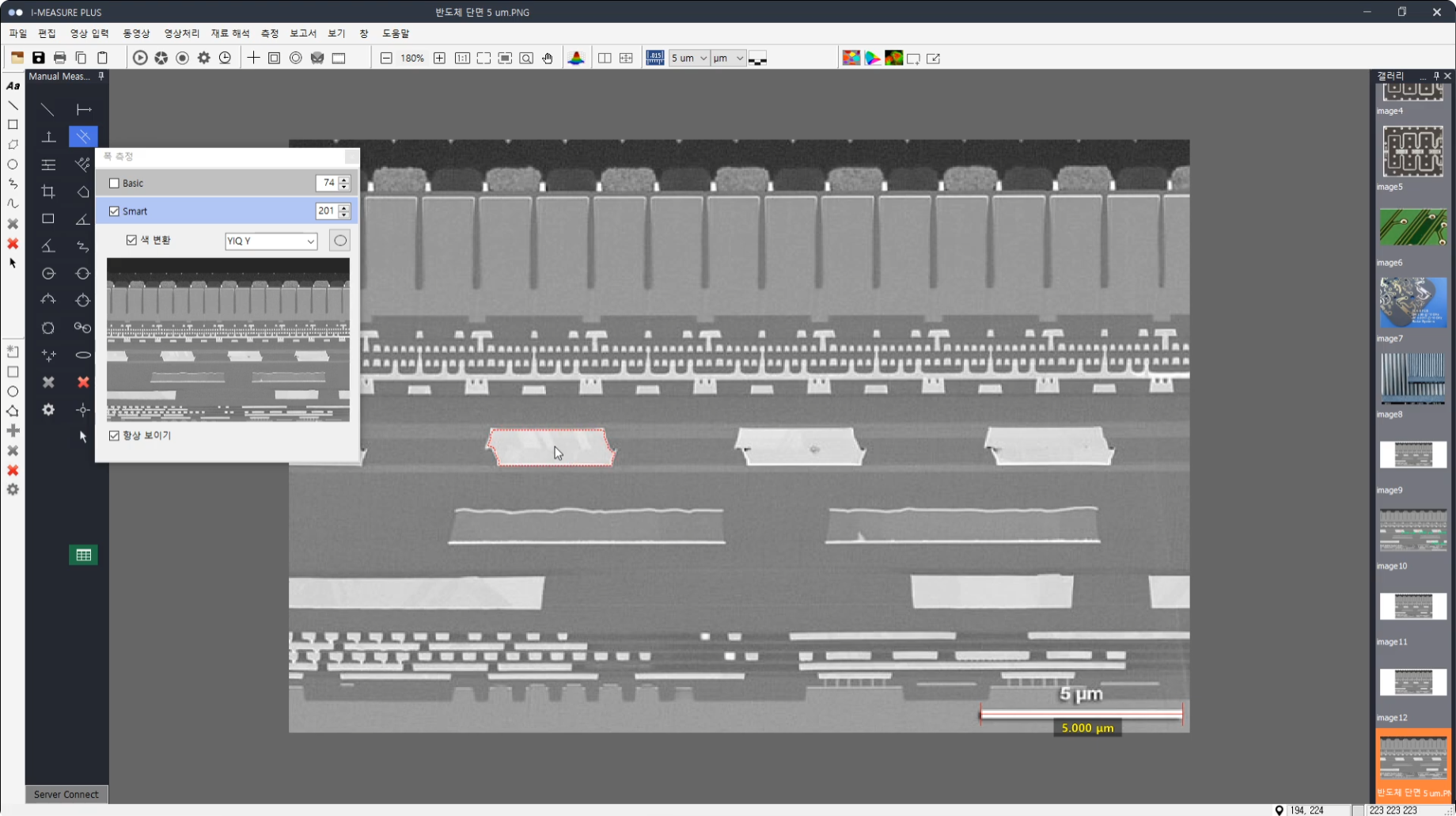

Automatic Edge Detection: High-speed algorithms detect circuit edges instantly to calculate widths without manual measurement bias.
Multi-Point Sampling: Measures multiple points along a single line to provide statistical data (Avg, Max, Min) for process control.
High-Resolution Imaging: Optimized for capturing and analyzing the finest details of micro-circuits.

3. Key Applications

PCB & FPCB: Trace width and spacing inspection for signal integrity.
Semiconductors: Critical Dimension (CD) measurement for wafer and photoresist patterns.
Precision Mesh: Dimensional inspection for industrial filters and grids.
