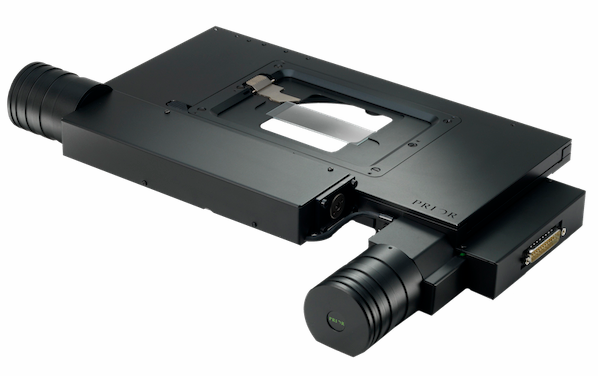

Motorized High Resolution Stage For Upright Microscopes

The H1P4A is a motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.

The most accurate and precise stage in the ProScan H101 range, it uses a 1 mm pitch ballscrew and 400 step motor drive configuration to provide four times the resolution of the H101A stage, making it ideal for applications that require reliable, short stage movements. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The H1P4A accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples. Alternative drive configuration options may be available depending on your region.

Motorized Flat Top High Resolution Stage for Upright Microscopy

The H101N1F is a motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.

The most accurate and precise, non-encoded, flat top stage, it uses a 1 mm pitch ballscrew and 200 step motor drive configuration to provide two times the resolution of the H101N2F stage. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.

The H101N1F accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.

Motorized Flat Top High Speed Stage for Upright Microscopy

The ProScan H101N2F is a motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.

It has a 2 mm ballscrew and 200-step motor for a balance of speed and resolution. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The H101N2F accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.

A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.

The ProScan H105/2U motorized XY stage is designed for upright industrial microscopy and is compatible with Nikon microscopes and the Prior OpenStand platform.

With 154 x 154 mm XY travel, it is optimized for scanning 6-inch semiconductor wafers. The slim design enables use in transmitted light applications.

The H105/2U features Prior's patented Intelligent Scanning Technology (IST) to enhance accuracy and linearity together with a 2 mm ballscrew for speed. It scans industrial samples reliably and efficiently.

The ProScan H105N2F is a motorized XY flat-top stage designed for upright industrial microscopes.

It is fully customizable for integration into OEM devices but also mounts directly onto Nikon industrial microscopes and the Prior OpenStand-L platform.

With 154 x 154 mm XY travel, it is optimized for scanning 6-inch semiconductor wafers and other industrial samples.

The  H105N2F scans industrial samples reliably and efficiently. It features Prior's patented Intelligent Scanning Technology (IST) to enhance accuracy and linearity, together with a 2 mm ballscrew for speed.

Its flat top plate allows easy access to the sample for loading and ensures compatibility with a wide range of optics.

It is compatible with Nikon NIS Elements software (appropriate package required).

Motorized 8-inch Travel Stage for Upright Microscopy

The ProScan H116/2 motorized XY stage for upright industrial microscopy is compatible with Prior's OpenStand-L platform and is fully customizable.

It has a long travel range and 25 kg load capacity for scanning large heavy samples such as 8-inch semiconductor wafers, flat panel displays and printed circuit boards up to 200 mm diameter.

The H116/2 features Prior's patented Intelligent Scanning Technology (IST) to enhance accuracy and linearity together with a 2 mm ballscrew for speed. It scans large industrial samples reliably and efficiently.

Other drive configurations for increased speed may be available depending on your region.

It is compatible with transmitted light applications and provides easy access for loading samples.

Motorized 12-inch Travel Stage For Upright Microscopy

The ProScan H112/2ST motorized XY stage is compatible with Nikon and Evident/Olympus upright industrial microscopes, Prior's OpenStand-L platform, and is easily integrated into custom microscopes.

Designed for scanning large, heavy samples such as 12-inch semiconductor wafers, flat panel displays, and printed circuit boards, it offers the longest travel range of any of Prior's XY stages. It is compatible with transmitted light applications.

The H112/2ST features Prior's patented Intelligent Scanning Technology (IST) to enhance accuracy and linearity together with a 2 mm ballscrew for speed.

This stage is compatible with Nikon NIS Elements, Olympus Stream Motion and Evident PRECiV software (appropriate package required).

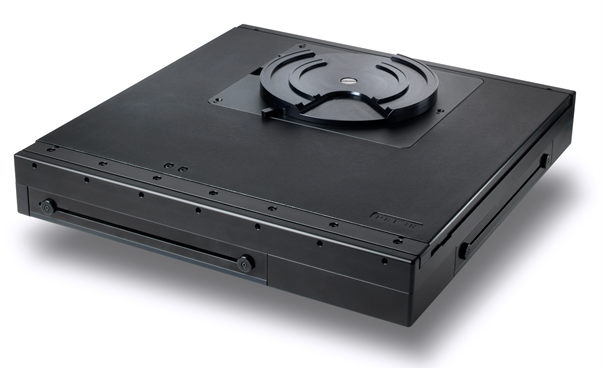

Hardness Testing Motorized Industrial Stage

The HT1111LC industrial hardness testing XY stage can withstand point loads of up to 100 kg without compromising its positioning performance.

This high load capacity makes it well suited to other heavy-duty industrial applications or as a microscope translation stage. It forms the base of the HT11 Series Heavy Duty Stages for Whole Animal and Industrial Imaging.

The HT1111LC uses Prior's patented Intelligent Scanning Technology (IST) to optimize stage accuracy and linearity under challenging load conditions.

Encoded Stage For Upright Microscopes

The ProScan HE01 is an encoded motorized XY stage for upright microscopes and is fully customizable. Its compact design makes it ideal for integration into OEM devices or customized microscopes.

It has a 2 mm ballscrew and 200-step motor for a balance of speed and resolution together with linear encoders for long-range repeatability. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The HE01 accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.

Encoded High Resolution Stage For Upright Microscopes

The HEP4 is an encoded motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.

The most accurate and precise stage in the ProScan H101 range, it uses a 1 mm pitch ballscrew and 400 step motor drive configuration to provide four times the resolution of the H101A stage, making it ideal for applications that require reliable, short stage movements.

Linear encoders ensure long-range repeatability while Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The HEP4 accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples. Alternative drive configuration options may be available depending on your region.

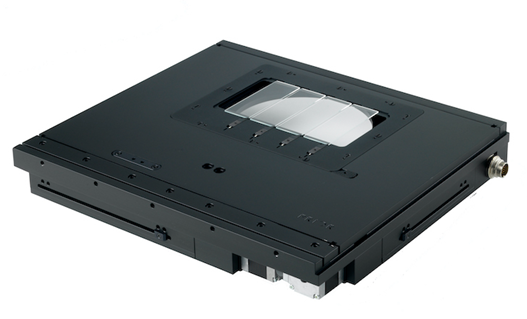

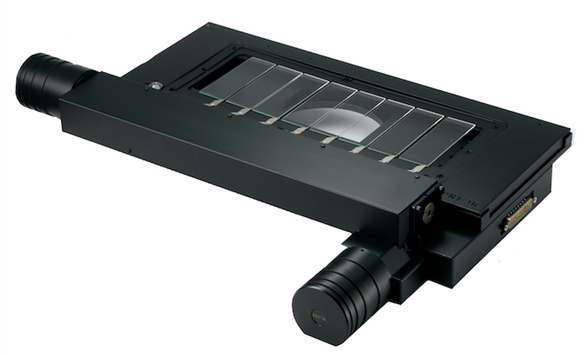

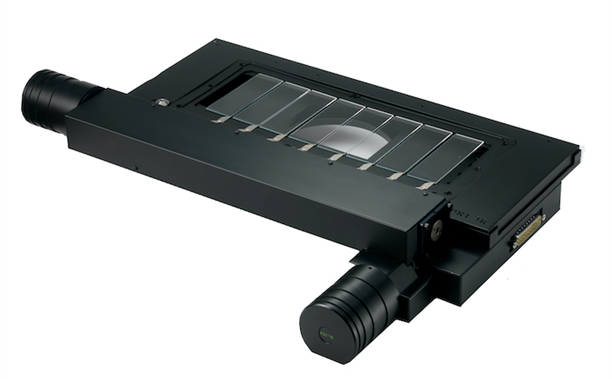

Encoded Motorized Stage With 8 Slide Capacity For Upright Microscopes

The HE38 encoded, motorized XY stage is designed for integration into custom microscopes or OEM designs and adapts to different hardware configurations.

It uses a 2 mm pitch ballscrew and 200-step motor drive to cover its large travel area quickly, and features Prior's patented Intelligent Scanning Technology (IST) to optimize stage accuracy and linearity. Long-range repeatability is also enhanced by linear encoders providing closed-loop positioning.

The HE38 fits up to eight 75 mm x 25 mm microscope slides and offers extended lateral travel for imaging large samples, such as PCBs, or arrays of multiple samples.

Encoded Motorized Flat Top High Resolution Stage for Upright Microscopy

The H101E1F is a motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.

It provides exceptional long-range repeatability, using linear encoders together with a 1 mm pitch ballscrew and 200-step motor drive configuration. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.

The H101E1F accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.

Encoded Motorized Flat Top High Speed Stage for Upright Microscopy

The ProScan H101E2F motorized XY stage for upright microscopes is fully customizable for integration into OEM devices.

It has a 2 mm ballscrew and 200-step motor for a balance of speed and resolution, together with linear encoders for exceptional long-range repeatability. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The H101E2F accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.

A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.

Encoded Motorized 6-inch Travel Stage For Upright Microscopy

The ProScan HE05/2U encoded motorized XY stage is designed for upright industrial microscopy and is compatible with Nikon microscopes and the Prior OpenStand platform. See the product compatibility tab for details.

With 154 x 154 mm XY travel, it is optimized for scanning 6-inch semiconductor wafers. The slim design enables use in transmitted light applications.

The HE05/2U features linear encoders and Prior's patented Intelligent Scanning Technology (IST) to enhance repeatability, accuracy, and linearity together with a 2 mm ballscrew for speed. It scans industrial samples reliably and efficiently, with several dedicated sample holders available.

The HE05/2U is compatible with Nikon NIS elements software (appropriate package required).

Encoded Motorized Flat Top 6-inch Travel Stage For Upright Microscopy

The ProScan H105E2F is an encoded motorized XY flat-top stage designed for upright industrial microscopy.

It is fully customizable for integration into OEM devices, but also mounts directly onto Nikon industrial microscopes and the Prior OpenStand-L platform. See the product compatibility tab for details.

The H105E2F is optimized for scanning 6-inch semiconductor wafers and other industrial samples.

With linear encoders and Prior's patented Intelligent Scanning Technology (IST) to enhance long-range repeatability, accuracy, and linearity it reliably locates specific regions. The 2 mm ballscrew enables it to cover the large surface area quickly for fast, efficient scanning.

Its flat top plate allows easy access to the sample for loading and ensures compatibility with a wide range of optics.

It is compatible with Nikon NIS Elements software (appropriate package required).

Encoded Motorized 8-inch Travel Stage For Upright Microscopy

The ProScan HE16/2 encoded motorized XY stage for upright industrial microscopy is compatible with Prior's OpenStand-L platform and is fully customizable.

It has a long travel range and 25 kg load capacity for scanning large, heavy samples such as 8-inch semiconductor wafers, flat panel displays and printed circuit boards up to 200 mm diameter.

The HE16/2 has linear encoders for exceptional long-range repeatability and a 2 mm ballscrew for a balance of speed and resolution. Prior's patented Intelligent Scanning Technology (IST) to enhance accuracy and linearity. It scans large industrial samples reliably and efficiently.

Other drive configurations for increased speed may be available depending on your region.

It is compatible with transmitted light applications and provides easy access for loading samples.

Encoded Motorized 12-inch Travel Stage For Upright Microscopy

The ProScan HE12/2ST encoded motorized XY stage is compatible with Nikon and Evident/Olympus upright industrial microscopes, Prior's OpenStand-L platform, and is easily integrated into custom microscopes.

Designed for scanning large, heavy samples such as 12-inch semiconductor wafers, flat panel displays, and printed circuit boards, it offers the longest travel range of any of Prior's XY stages. It is compatible with transmitted light applications.

The HE12/2ST has linear encoders for exceptional long-range repeatability and a 2 mm ballscrew for a balance of speed and resolution. Prior's patented Intelligent Scanning Technology (IST) to enhance accuracy and linearity. It is compatible with transmitted light applications and provides easy access for loading samples.

This stage is compatible with Nikon NIS Elements, Olympus Stream Motion and Evident PRECiV software (appropriate package required).
