Prior OpriScan 전동 스테이지 컨트롤러

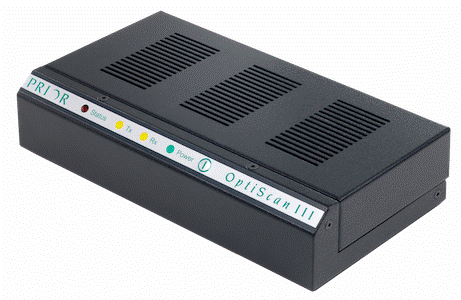

OptiScan III Controller

Compact three-axis controller
Plug and play for easy setup of stages and focus drives
Compatible with many commercial imaging software suites
Ideal for entry-level motorized microscopy

Affordable Controller for 3-axis Motorized Stage Systems

The OptiScan III ES11 controller is a reliable and affordable solution for automating routine imaging applications with fast, accurate movements.

It enables users to easily combine and control XY stages and focusing mechanisms to facilitate routine motorized microscopy. The controller is plug-and-play to allow quick and easy setup and is most typically combined with Prior's ES111 stage and PS3H122R focus motor.

It can also be combined with Prior's ProScan stages where larger travel ranges are needed but with lower precision movement. With a compact footprint, the ES11 is easily integrated into OEM devices.

The ES11 is compatible with many popular image analysis software packages, such as Nikon NIS Elements and Evident/Olympus PRECiV, Stream Motion and CellSens Dimension.

For OEM customers and customized microscope builders, the OptiScan III is also provided with an open access software development kit (SDK).

Specification

Power	Universal external power supply; Input 100-240V, 50/60Hz max 1.6A

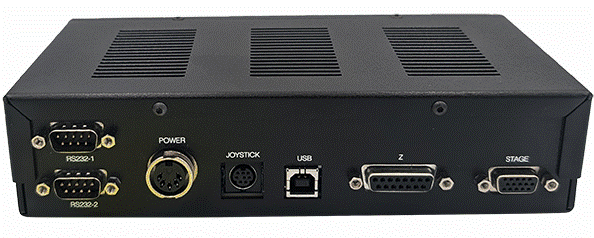

Communications Protocol	USB, RS232C at 9600,19200 or 38400 baud, 8 bit word, 1 stop bit, no parity, no handshake
Travel Range	Upright; 125 x 75mm, Inverted; 115 x 77mm
Repeatability	±5µm
Step Size (Resolution)	3mm ball bearings
Linear Slides	210 x 120 x 55mm
Drive Mechanism	Anti backlash precision lead screw
Limit Switches	X and Y standard, semi-adjustable

PCI II

Prior PCI II 는 133Mbps 의 속도로 32bit bus 통합합니다. 이는 250 nanoseconds 보다 빠른 속도로 통신 응답하며 표준 RS232 방식보다 100 배 빠르게 동작합니다.
Prior PCI II controller는 X, Y 축의 0.01 micron Z축의 0.002 micron 보다 더 정밀하게 구동이 가능한 능력이 있습니다.

Six (independently controlled) axes can be vectored if required.
Differential (RS422) quadrature encoder inputs (including position reference signal)
+5V output power for the endcoder is provided.
16 bit analogue voltage output for Piezo control.
26 way female high-density D-type with screw fittings for stage and filter wheel.
Mini-din for joystick with digipot, (XYZ control).
Additional power supply connection on optional shutter/encoder slot board.
Control of three shutters.
Four TTL I/O on optional TTL slot board.
Dimensions 175mm X 106.68mm.

현미경 자동화의 최신 혁신 제품인 Prior PCI II High Speed Stepper Motor Controller를 소개 합니다.

Prior PCI II 는 전동 스테이지, 조이스틱, 포커스모터, Filter wheel, shutter 등 모든 것을 PC에서 통제가 가능합니다.

개인 PC에 직접 설치함으로서 Controller 박스 없이 시스템제어가 가능합니다.

Affordable Controller for 3-axis Motorized Stage Systems
