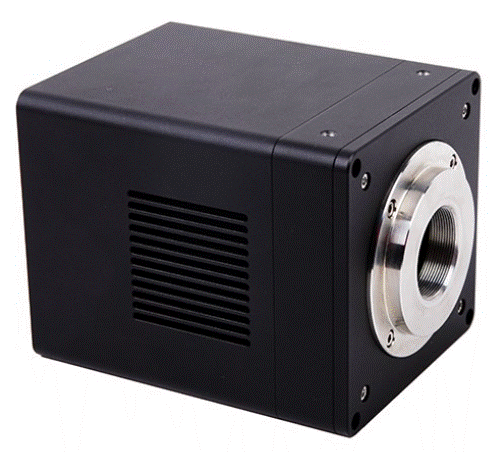

MTR3CMOS Series TE-Cooling C-mount USB3.0 CMOS
The MTR3CMOS adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface. MTR3CMOS hardware resolutions range from 0.5M to 45M and come with the integrated CNC aluminum alloy compact housing.
With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
The MTR3CMOS can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
특징
| 모델 | 센서 및 크기(mm) | 픽셀(μm ) | G Sensitivity Dark Signal | FPS / 해상도 | 비닝 | 노출 |
| MTR3CMOS45000KMA | 45M/IMX492(M, RS) 4/3”(19.11x13.00) | 2.315 x2.315 | 1/30초로 351mV 1/30초로 0.12mV | 8.1@8176x5616 30.0@4080x2808 8.1@7408x5556 33.0@3696x2778 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1360x720 8비트 / 12비트 | 1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9 | 0.1ms~1시간 |
| MTR3CMOS26000KPA | 26M/IMX571(C, RS) 1.8인치(23.48x15.67) APS-C | 3.76 x3.76 | 1/30초로 485mv 1/30초로 0.07mv | 14@6224x4168 37@3104x2084 110@2064x1386 8비트 / 16비트 | 1x1 2x2 3x3 | 0.1ms~1시간 |
| MTR3CMOS21000KPA | 21M/IMX269(C) 4/3”(17.4x13.1) | 3.3 x3.3 | 1/30초의 400mv 1/30초로 0.1mv | 17@5280x3954 17@3952x3952 56@2640x1976 67@1760x1316 192@584x438 8비트 / 12비트 | 1x1 1x1 2x2 3x3 9x9 | 0.1ms~1시간 |
| MTR3CMOS20000KPA | 20M/IMX183(C, RS) 1 “(13.056x8.755) | 2.4 x2.4 | 1/30초로 462mv 1/30초로 0.21mv | 19@5440x3648 48.8@2736x1824 59.4@1824x1216 8비트 / 12비트 | 1x1 2x2 3x3 | 0.1ms~1시간 |
| MTR3CMOS16000KPA | 16M/MN34230PLJ(씨) 4/3인치(17.6x13.3) | 3.8x3.8 | 2413LSB 89.1LSB | 6@4640x3506 20@2304x1750 48.0@1536x1160 8비트 / 12비트 | 1x1 2x2 3x3 | 0.15ms~1시간 |
| MTR3CMOS10300KPA | 10.3M/IMX294(C) 4/3 “(19.11x13.0) | 4.63 x4.63 | 1/30초로 419mv 1/30초로 0.12mv | 30.0@4128x2808 38.5 @4096x2160 59.8@2048x1080 87.2@1360x720 8비트 / 14비트 | 1x1 1x1 2x2 3x3 | 0.15ms~1시간 |
| MTR3CMOS09000KPA | 9M/IMX533(C) 1”(11.28x11.28) | 3.76 x3.76 | 1/30초로 534mv 1/30초로 0.04mv | 40@2992x3000 62@1488x1500 186@992x998 8비트 / 14비트 | 1x1 2x2 3x3 | 0.1ms~1시간 |
| MTR3CMOS08300KPA | 8.3M/IMX585(C, RS) 1/1.2"(11.14x6.26) | 2.9x2.9 | 1/30초로 5970mv 1/30초로 0.15mv | 45@3840x2160 70@1920x1080 8비트 / 12비트 | 1x1 2x2 | 0.1ms~1시간 |
| MTR3CMOS07100KPA | 7.0M/IMX428(C，GS) 1.1 “(14.4x9.9) | 4.5 x4.5 | 1/30초로 2058mv 1/30초로 0.15mv | 51.3@3200x2200 133.8@1584x1100 8비트 / 12비트 | 1x1 1x1 | 0.1ms~1시간 |
| MTR3CMOS02300KPA | 2.3M/SC2110(C,RS) 1.69인치(23.0x14.4) | 12x12 | 120000 mV/룩스·초 @HCG | 120@1920x1200 8비트 / 12비트 | 1x1 | 0.1ms~1시간 |
| MTR3CMOS01700KPA | 1.7M/IMX432(C，GS) 1.1 “(14.4x9.9) | 9.0 x9.0 | 1/30초로 4910mv 1/30초로 0.3mv | 98.6@1600x1100 8비트 / 12비트 | 1x1 | 0.1ms~1시간 |
| MTR3CMOS01300KMA | 1.3M/GLUX9701BSI (M, UV, RS) 1 “(12.493x9.994) | 9.76 x9.76 | 2.57x108 (e-/((W/m2).s) ) QE89%@610nm 0.08(e-/s/픽셀) @-28C | 30fps@1280×1024 30fps@640×512 8비트 / HDR 16비트 | 1x1 2x2 | 0.1ms~1시간 |
| MTR3CMOS00500KMA | 0.5M/GLUX1605BSI (M, UV, RS) 1 “(12.8x9.6) | 16.0 x16.0 | 6.4x108 (e-/((W/m2).s) ) QE91%@550nm 50(e-/s/픽셀) | 60.0@800x600 60.0@400x300 8비트 / HDR 16비트 | 1x1 2x2 | 0.1ms~1시간 |
