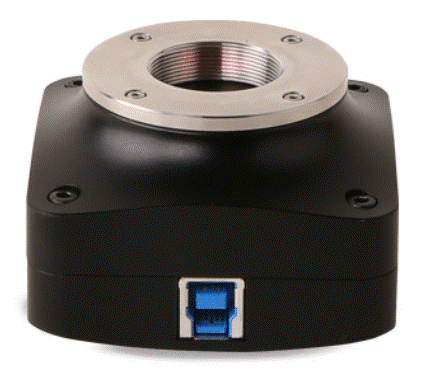

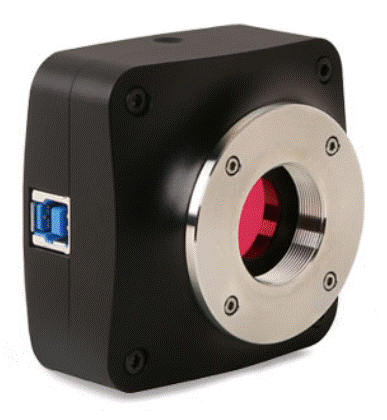

ECMOS Series C-mount USB2.0 CMOS Camera
 |  |
ECMOS adopt SONY Exmor CMOS sensor as the image-picking device and USB2.0 is used as the data transfer interface.
ECMOS hardware resolutions range from 1.2M to 8.3M and come with the integrated CNC aluminum alloy compact housing.
The ECMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
특징
| 모델 | 센서 및 크기(mm) | 픽셀(μm) | FPS / 해상 |
| ECMOS08300KPA | 8.3M/IMX274(C) 1/2.5”(6.22x3.50) | 1.62x1.62 | 4@3840x2160 16@1920x1080 |
| ECMOS06600KPA | 6.6M/IMX326(C) 1/2.9”(4.98x3.50) | 1.62x1.62 | 5@3072x2160 6@2592x1944 6@3072x1728 7@2160x2160 |
| ECMOS05300KPA | 5.3M/IMX178(C) 1/1.9“ (7.37x4.15) | 2.4x2.4 | 5.5@3072 x1728 35@1280x720 |
| ECMOS05000KPA | 5.0M/IMX335(C) 1/2.8“ (5.18x3.89) | 2.0x2.0 | 6.4@2592 x1944 26.7@1296x972 |
| ECMOS03100KPA | 3.1M/IMX123(C) 1/2.8“ (5.12x3.84) | 2.5x2.5 | 11.5@2048x1536 18.3@1920x1080 18.1@1600x1200 29.5@1024x768 |
ECMOS02000KPA | 2.0M/IMX290(C) 1/2.8“(5.56x3.13) | 2.9 x2.9 | 17@1920x1080 |
| ECMOS01200KPA | 1.2M/IMX224(C) 1/3“(4.80x3.60) | 3.75 x3.75 | 27@1280x960 54@640x480 |
