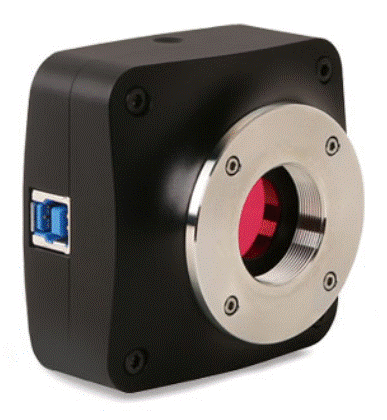

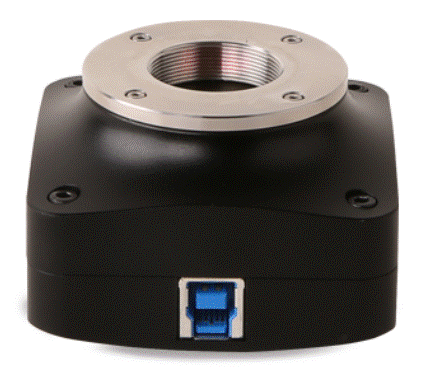

E3CMOS Series C-mount USB3.0 CMOS Camera
 |  |
E3CMOS adopt SONY Exmor CMOS sensor as the image-picking device and USB 3.0 is used as the data transfer interface.
E3CMOS hardware resolutions range from 1.2M to 8.3M and come with the integrated CNC aluminum alloy compact housing.
The E3CMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
특징
| 모델 | 센서 및 크기(mm) | 픽셀(μm) | FPS/해상도 |
| E3CMOS45000KMA | 45M/IMX492(M,RS) 4/3인치(19.11x13.00) | 2.315x2.315 | 8.1@8176x5616 30.0@4080x2808 8.1@7408x5556 33.0@3696x2778 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1360x720 8비트 / 12비트 |
| E3CMOS20400KMA | 20.4M/IMX541(M,GS) 1.1 “(12.32x12.32) | 2.74 x2.74 | 17.5@4496x4496 64.4@2240x2240 64.4@1120x1120 |
| E3CMOS20000KMA | 20M/IMX183(M,RS) 1 “(13.06x8.76) | 2.4 x2.4 | 17.5@5440x3648 40@4080x2160 48@2736x1824 60@1824x1216 8비트 / 12비트 |
| E3CMOS20000KPB | 20M/IMX147(C) 1/2.1인치(6.24x4.67) | 1.2 x 1.2 | 5.2@5200x3888 15@2592x1944 30@1728x1296 8비트 / 12비트 |
| E3CMOS12400KMA | 12.4M/IMX545(M,GS) 1/1.1 “(11.22x8.22) | 2.74 x2.74 | 28.2@4096x3000 100.9@2048x1500 100.9@1024x750 |
| E3CMOS12300KMA | 12.3M/IMX304(M) 1.1인치(14.13x10.35) | 3.45 x3.45 | 23.4@4096x3000 46.3@2048x1500 8비트 / 12비트 |
| E3CMOS12000KPA | 12M/IMX226(C) 1/1.7인치(7.40x5.55) | 1.85x1.85 | 7.1@4000x3000 30@2048x1080 8비트 / 12비트 |
| E3CMOS06300KPA | 6.3M/IMX178(C,RS) 1/1.8인치(7.37x4.92) | 2.4x2.4 | 15@3072 x2048 26@1536x1024 8비트 / 14비트 |
| E3CMOS06300KMA | 6.3M/IMX178(M,RS) 1/1.8인치(7.37x4.92) | 2.4x2.4 | 30@3072 x2048 50@1536x1024 8비트 / 14비트 |
| E3CMOS05100KMA | 5.1M/IMX547(M,GS) 1/1.8인치(6.71x5.61) | 2.74x2.74 | 63@2448x2048 208.4@1224x1024 |
| E3CMOS05000KMA | 5.0M/IMX264(M, GS) 2/3인치(8.45x7.07) | 3.45x3.45 | 35@2448x2048 60@1224x1024 8비트 / 12비트 |
| E3CMOS03100KPB | 3.1M/IMX123(C) 1/2.8인치(5.12x3.84) | 2.5x2.5 | 25@2048x1536 30@1920x1080 8비트 / 14비트 |
| E3CMOS03100KMC | 3.1M/IMX265(M, GS) 1/1.8인치(7.07x5.30) | 3.45x3.45 | 53@2048x1536 85@1024x768 8비트 / 12비트 |
| E3CMOS02300KPA | 2.3M/IMX185(C) 1/1.9인치(7.20x4.50) | 3.75x3.75 | 38@1920x1200 66@960x600 8비트 / 12비트 |
| E3CMOS02300KPB | 2.3M/IMX249(C, GS) 1/1.2인치(11.25x7.03) | 5.86x5.86 | 30@1920x1200 8비트 / 12비트 |
| E3CMOS01500KMA | 1.5M/IMX273(M, GS) 1/2.9인치(4.968x3.726) | 3.45x3.45 | 228@1440x1080 530@720x540 8비트 / 12비트 |
| E3CMOS01200KPA | 1.2M/IMX224(C) 1/3인치(4.80x3.60) | 3.75 x3.75 | 60@1280x960 120@640x480 8비트 / 12비트 |
| E3CMOS00400KPA | 0.4M/IMX287(C, GS) 1/2.9인치(4.97x3.73) | 6.9x6.9 | 520@720x540 8비트 / 12비트 |
