DZ4 Motorized Zoom Microscope
Lightweight / Compact
- Reviewing all the design of optical system to realize lightweight compact body Being easier to be implement into equipment as optical head
Zoom Ratio 12 (0.83X to 10X)
- Enhancing lower magnification side to get wider viewing field Enhancing futher workability and efficiency
Various kinds of objectives (5kinds)
- Magnification range covers 0.42x to 70x with these 5 objective Sample observation can be realized under optimum conditions such as high resolution,
long working distance or wider viewing field
Motorized Zoom
- Motorized Zoom is a standard function, and a motorized bracket is available as an option
Option
| Correction System | Afocal |
| Zoom Ratio | 12 |
| Image Size | Φ 8mm(1/2 CCD application , with C-Mount) |
| Weight | 1,250g (exclusive of objective, camera & LED) |
| Illumination System | Standard : Coxial Reflecting Illumination Optinal : Partial shied illumination, Diffuse illumination, Ring Light |

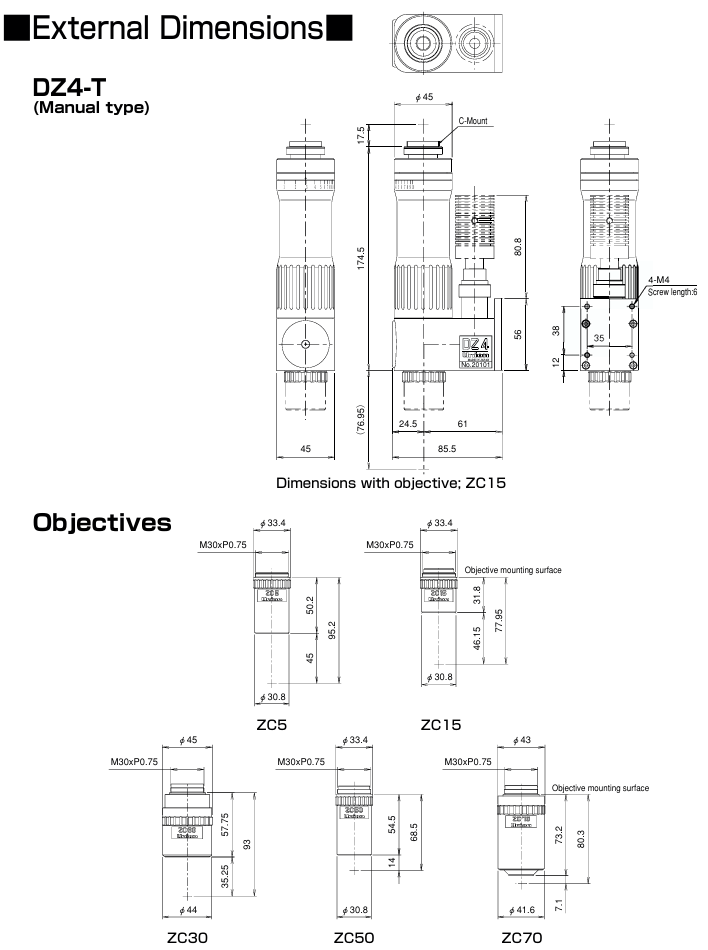

| Objective | Optical Magnification | Total magnification | N.A | W.D | Resolution | Focal Depth | Weight |
| ZC5 | 0.42 ~ 5x | 25.2 ~ 300 | 0.01 ~ 0.07 | 45mm | 33.69 ~ 4.92 | ± 2774~59.2 | 190g |
| ZC15 | 1.25 ~ 15x | 75 ~ 900 | 0.03 ~ 0.2 | 46.2mm | 11.18 ~ 1.68 | ± 305.6~6.87 | 150g |
| ZC30 | 2.5 ~ 30x | 150 ~ 1800 | 0.06 ~ 0.36 | 35.25mm | 5.59 ~ 0.93 | ± 76.4~2.09 | 396g |
| ZC50 | 4.16 ~ 50x | 249.6 ~ 3000 | 0.1 ~ 0.45 | 14mm | 3.36 ~ 0.74 | ± 27.52~1.35 | 250g |
| ZC70 | 5.83 ~ 70x | 349.8 ~ 4200 | 0.14 ~ 0.7 | 7.1mm | 2.4 ~ 0.48 | ± 14.05~0.56 | 550g |
