C3CMOS Series C-mount USB3.0 CMOS Camera
 |  |

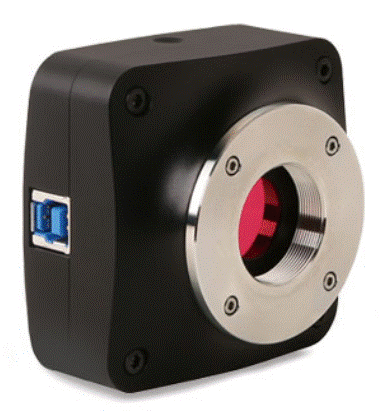

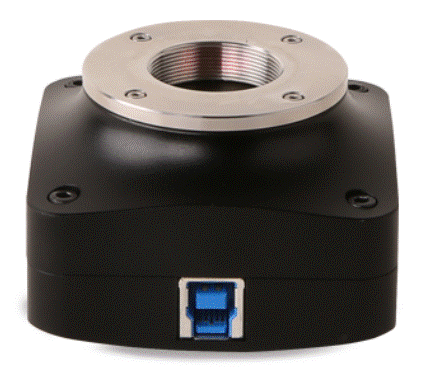

ToupTek C3CMOS Microscope Camera is compact & high high performance USB3.0 CMOS Camera and it adopts Sony or
OnSemi CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
C3CMOS hardware resolutions range from 3.5MP to 10MP and come with the compact CNC aluminum alloy housing.
The C3CMOS can be widely used in brightfield light environment and microscope image capture and anaysis with higher frame rate.
특징
| 모델 | 센서 및 크기 | 픽셀(μm) | FPS/해상도 |
| C3CMOS12000KPA | 12M/IMX577(C) 1/2.1인치(5.95x4.71) | 1.55x1.55 | 7.5@3840x3040 43@1920x1516 122@960x758 |
| C3CMOS10000KPA | 10M/IMX577(C) 1/2.3인치(5.68x4.26) | 1.55x1.55 | 8.5@3664x2748 49@1832x1374 137@912x686 |
| C3CMOS05100KPA | 5.1M/AR0521(C) 1/2.5인치(5.70x4.28) | 2.2x2.2 | 15.5@2592x1944 49.5@1296x972 97.5@648x486 |
| C3CMOS05100KPB | 5.1M/IMX335(C) 1/2.8인치(5.18x3.89) | 2.0x2.0 | 25@2592x1944 40@1296x972 |
| C3CMOS04100KPA | 4.1M/IMX347(C) 1/1.8인치(7.795x4.408) | 2.9x2.9 | 20@2688x1536 30@2048x1536 40@1536x1536 100@1344x768 |
| C3CMOS03500KPA | 3.5M/SC4236(씨) 1/2.6인치(5.76x3.84) | 2.5x2.5 | 30@2304x1536 30@1152x768 |
